Our company can manufacture production lines for production composite mesh made of fiberglass or basalt. We offer a choice of equipment configurations equipment, tailored to your goals and budget.

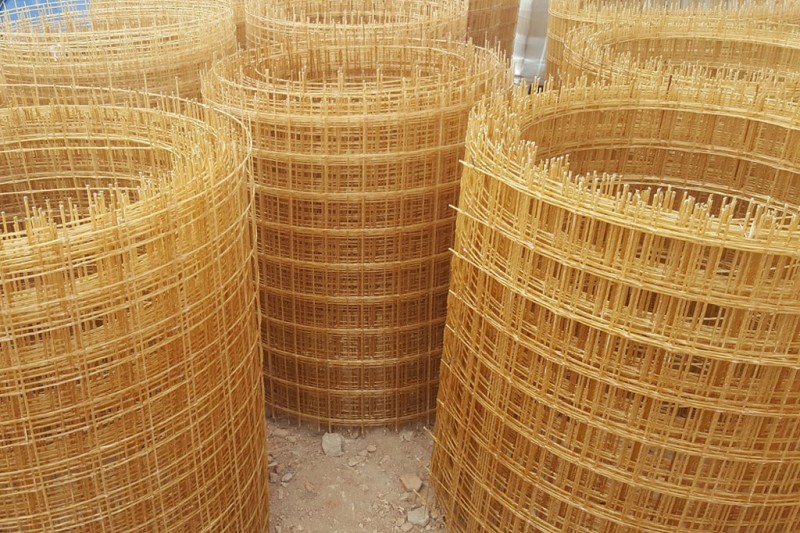

Composite fiberglass and basalt mesh occupy a distinct and steadily growing niche in construction. This relatively new material is used in projects for houses, industrial facilities, roads, bridges, tunnels and other structures. Its growing use is driven by resistance to corrosion, chemicals, moisture and temperature changes, as well as its low weight, ease of handling and low thermal conductivity.

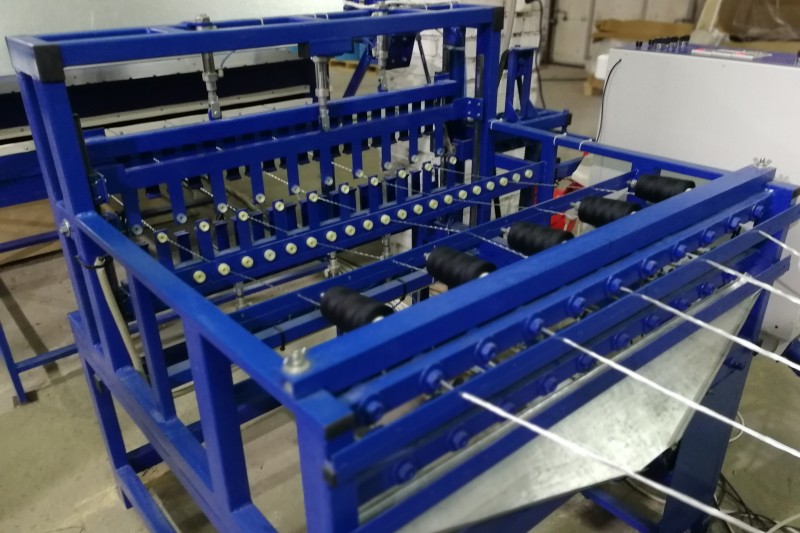

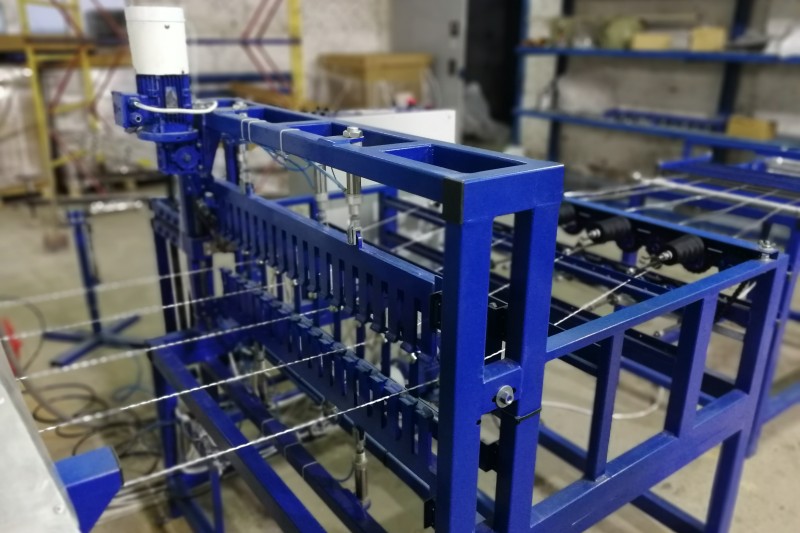

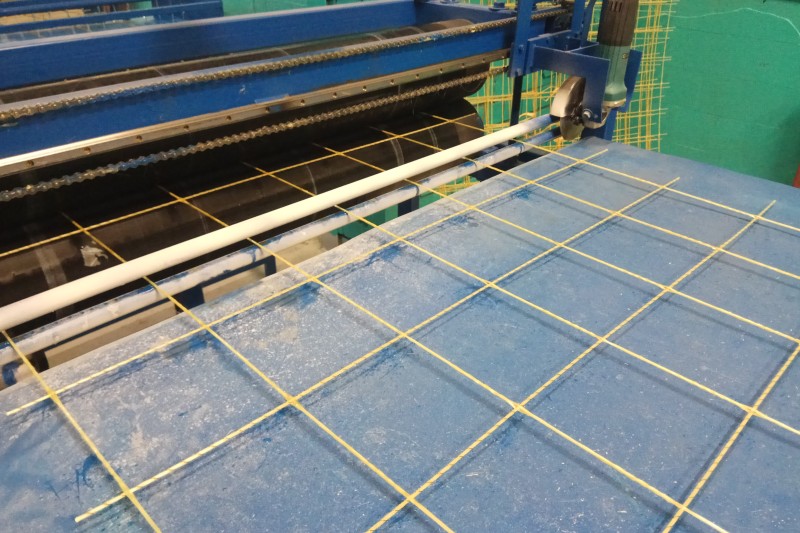

Our equipment can produce composite basalt and fiberglass mesh in widths of 1 or 2 m, depending on the line configuration. The mesh size can be adjusted.
Only 1–2 operators are required to run the line, which helps keep staffing costs to a minimum.
We manufacture four equipment configurations, differing in line width and maximum bar diameter:
The 1-metre line can produce mesh from 0.5 to 1 m wide; the 2-metre line can produce mesh from 0.5 to 2 m wide.

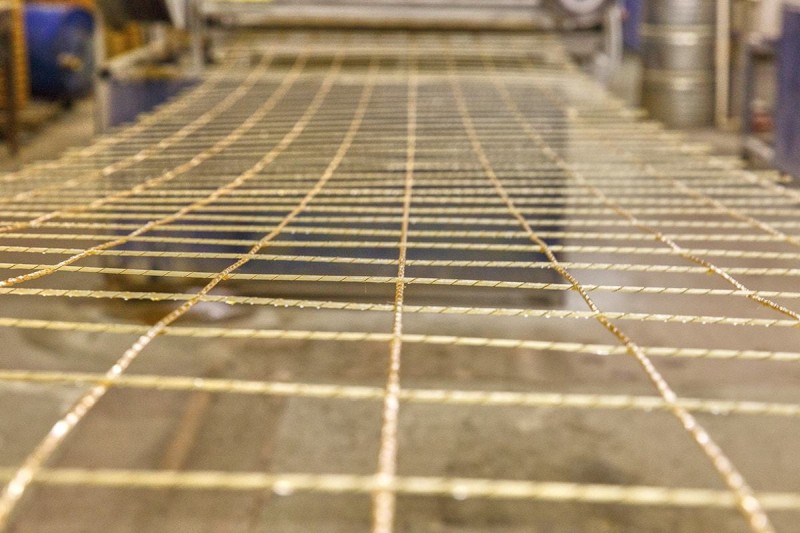

By adjusting the line settings, the mesh size can be varied from 50 to 200 mm in any combination.
Additional design options equipment depend on the way the bars are interwoven in the mesh:
The second mesh-weaving option provides increased strength; this modification costs an additional RUB 330,000.
profitability from 90%
payback period from 1 month
staff 1–2 people
To produce high-quality mesh that meets GOST requirements, it is essential to use a proven and certified technology developed by professionals. Our company has its own laboratory specializing in composite-material research and development.
Our research laboratory is headed by Pavel Nikolaev.
- Doctor of Chemical Sciences and professor in the Department of Chemistry and Technology of High-Molecular Compounds at Ivanovo State University of Chemistry and Technology.
Pavel Nikolaev describes the work as follows:
Since 1973, my research interests have focused on epoxy oligomers and composite materials based on them. Since 2012, I have headed the laboratory of the Ivanovo Mechanical Plant research and production company. The production of building materials is a major responsibility: people’s health and even lives are at stake, so technology must never be treated carelessly.
The laboratory draws on the knowledge and experience accumulated over more than 40 years of scientific work. Rebar quality, high productivity and environmentally responsible production are the laboratory’s main areas of technology development.
More information about our laboratory is available on the Our laboratory
Our own research laboratory, combined with many years of research experience, assures our partners that they receive a high-quality, certified technology meeting the strictest technical regulations.
Call us now and we will explain how to produce high-quality fiberglass mesh.

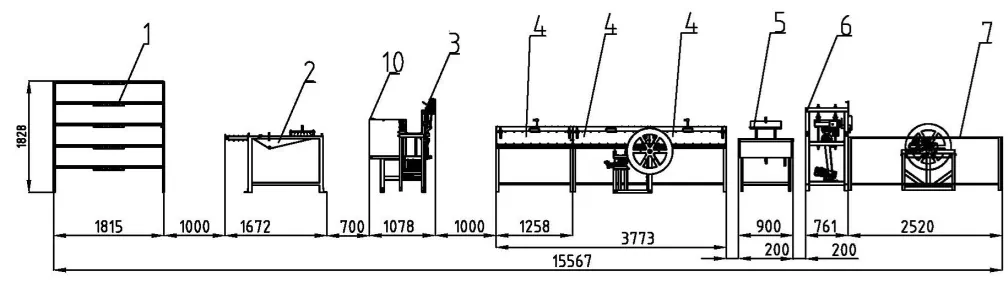

Equipment dimensions: 14 × 1.5 × 2 metres
Installation-room dimensions: length 18–20 metres; minimum ceiling height: 2.5 metres.
Two modes: warm-up – 20 kW (40 min); operating mode – 12 kW
Our energy-saving settings can save up to RUB 20,000 per line per shift, in addition to your profit.
0.5 to 4 m² per minute.
Monthly mesh output:
LS-1 – up to 70,000 linear metres;
LS-2 – 140,000 linear metres.
1–2 operators are sufficient to run the line
Our specialists train the operators.
The line is supplied with complete technical documentation.
The equipment warranty is 3 years.
Warranty and post-warranty service.
Output of 3,000,000 linear metres of finished product. The equipment is reliable, with a proven service life of 10 years without major overhaul.
LS-1 line: 0.5 to 1 m.
LS-2 line: 0.5 to 2 m.
Mesh width is adjusted according to the technology and the supplied instructions
from 50 to 200 mm in any combination
The mesh size can be varied within these limits by adjusting the line settings.
SPS-1-4/SPS-2-4 – up to 4 mm
SPS-1-8/SPS-2-8 – up to 8 mm
Our equipment can produce mesh with bar diameters from 1 to 8 mm, depending on the equipment configuration.

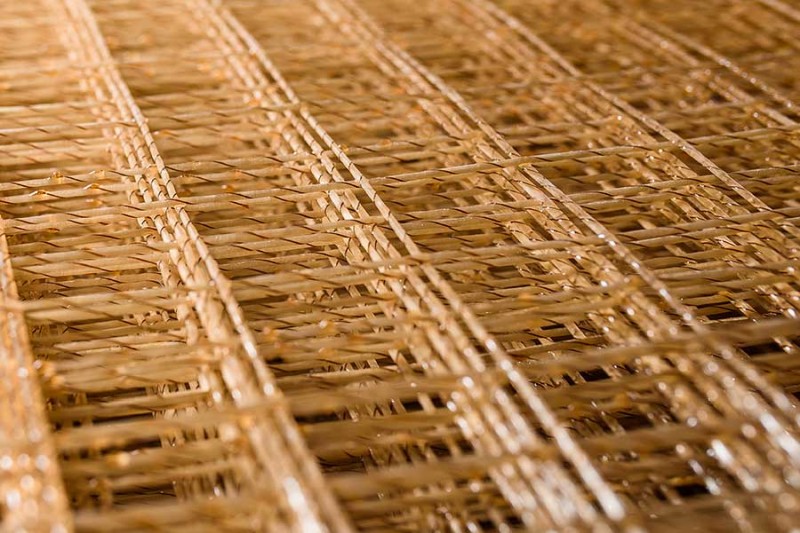

1. Carpet weave.
2. Twisted weave.
Twisted mesh weaving provides increased strength; this modification costs an additional RUB 300,000.
We provide our customers with innovative, certified production technology.
We deliver ordered equipment anywhere in Russia and worldwide.
We have supplied equipment to 135 companies in Russia and 30 companies in the CIS and the European Union.
We deliver, assemble and set up your equipment and produce a trial batch.
We train your employees to operate the equipment and help with online sales.
You can always count on us. We provide complete maintenance for our production lines.
I had long dreamed of starting my own fiberglass production business in Iraq. The IMZ team explained every aspect of the production process and showed me videos of the plant and its products. I was impressed. We ordered the equipment and started production a month and a half later. It is profitable. I highly recommend it.
I am very pleased with our cooperation with NPO Zvezda. We have no complaints about delivery or assembly: everything was completed on time and to a high standard. All documents, certificates, technical specifications, the business plan, and test results were provided immediately.
I spent a long time deciding which supplier to work with and chose NPO Zvezda. They had never let us down before. The machine was delivered and installed on time, everything was explained and tested. I am happy with my purchase; now it is up to me.
We have been working with construction materials for more than 12 years. We decided to start manufacturing composite rebar. IMZ was selected as the equipment supplier "IMZ". We first ordered a rebar production line and then expanded with mesh and profile lines. IMZ has proven to be a reliable and responsible partner that guarantees product quality.
I had always wanted to start my own business, but every option required a lot of money. Then I saw an advertisement for a composite rebar production line. No special expertise was required; the technology and suppliers are provided. I chose the SPA-2 line, and it has fully met my expectations. I am considering further expansion.
We would like to thank IMZ for implementing our production modernization project. The aim was to increase output and bring quality in line with GOST standards. This success was achieved thanks to the company highly qualified specialists and prompt resolution of the assigned tasks.
Composite materials have long been recognised in developed countries and are used successfully by construction professionals.
The construction market is vast. High-quality construction fiberglass rebar is in high demand and can successfully replace A-III steel rebar in many applications.

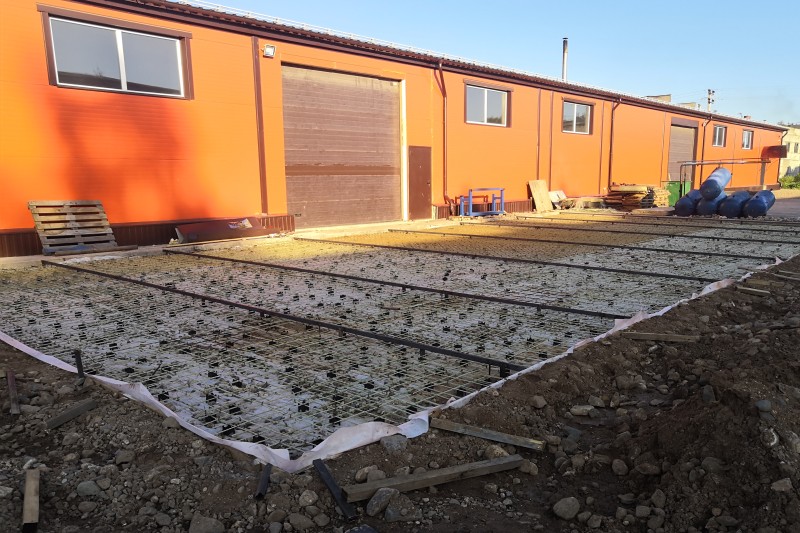

Fiberglass and basalt-fiber composite materials are indispensable for constructing and repairing foundations, walls of buildings of any height, roads, piles and bridges. They are stronger, lighter, less expensive and more durable than steel. The use of polymer fiberglass rebar and fiberglass profiles is especially justified and necessary for structures operating in high-moisture areas and chemically aggressive environments.
We supply mesh production machines to cities throughout Russia and the CIS. Simply call us at 8 (800) 550-39-50.
